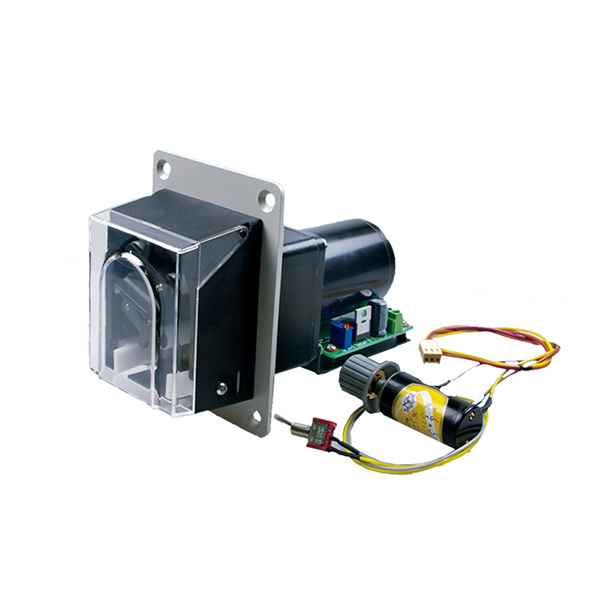

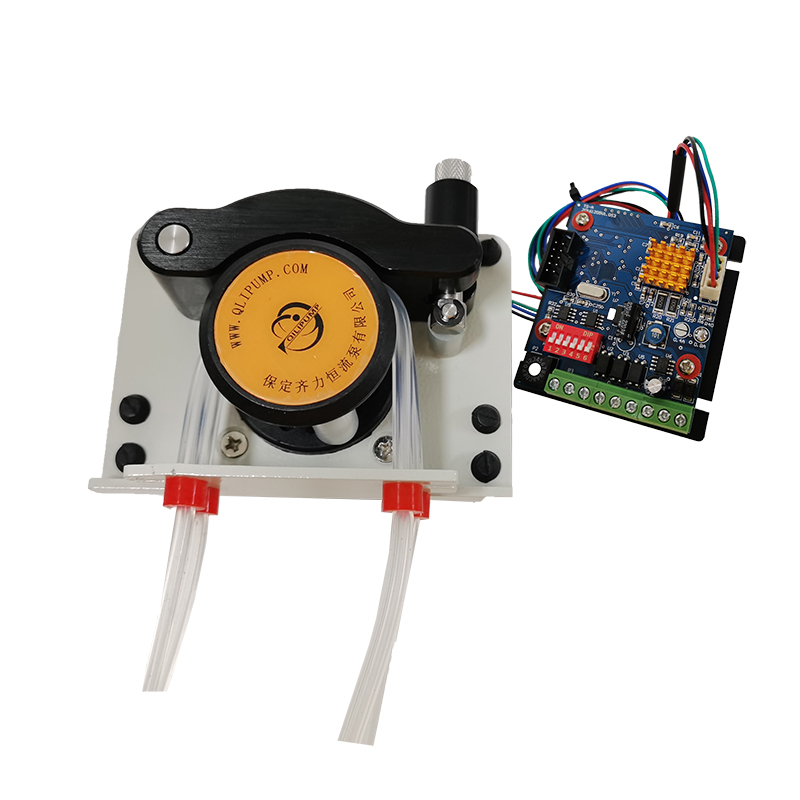

Main features of OEM06 peristaltic pump
▲Driven by DC/AC geared motor and can be equipped with speed control board.
▲It can provide a maximum flow rate of 240mL/min and a fixed speed.
▲Hose fixing form is optional: elastic clamping type and pipe joint type.
▲The pump head with spring can greatly increase the life of the hose.
▲B(niǎo)eautiful appearance, small size, convenient installation, simple and intuitive operation, suitable for OEM supporting use.
| range of rotation | 5, 8, 20, 60, 110rpm, fixed speed optional | Speed resolution | 1rpm |
| motor | AC/DC geared motors | External speed control | 0-10kHz pulse control (or 0-5V, 0-10V, 4-20mA) |
| Applicable power supply | AC220V/DC24V | Power consumption | ≤15W |
| working environment | Ambient temperature 0～40℃, relative humidity <80% | Dimensions (L×W×H) | 162.5 ×80×110(mm) |
| Drive weight | 1.18kg | Use hose |
16#、25# |
| model | Applicable pump head | Applicable hose | Flow range (ml/min) |
| OEM06 | TH15 | 16# 25# | ≤240 |
